PZ-TYPE

PZ-Type (5/8″ WATER DEFROST)

FEATURE

• Ø15.88 copper tube
• PIPE PITCH 43.3mm × 50.0mm.
• Double fin space making longer defrosting term by even-frosting on surface of coils & effect increasing heat transfer area per unit volume
• Application for large warehouse.

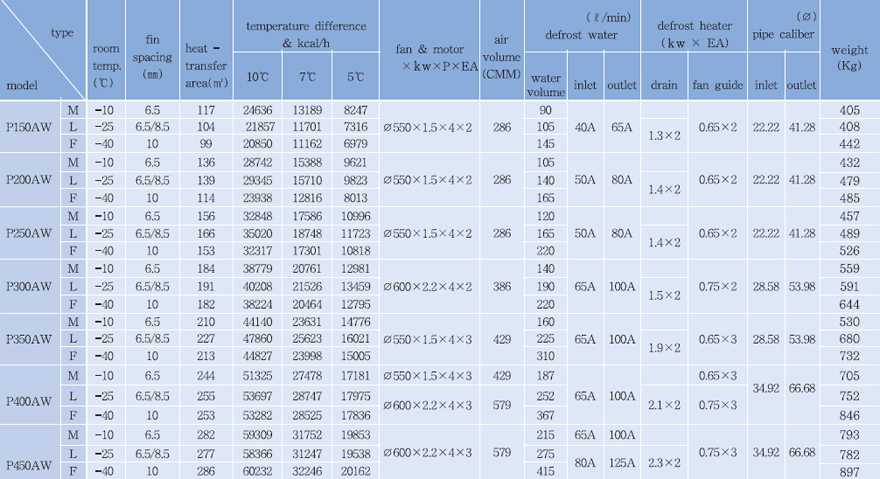

SPECIFICATIONS

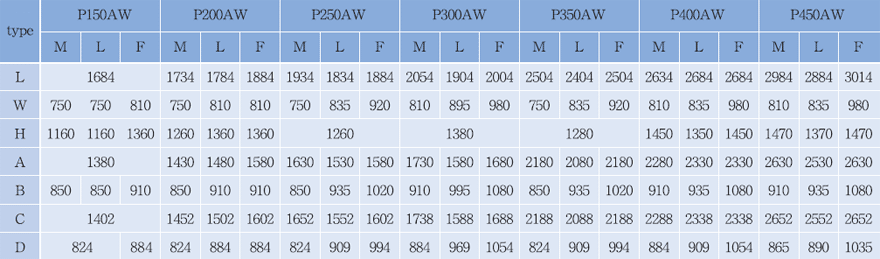

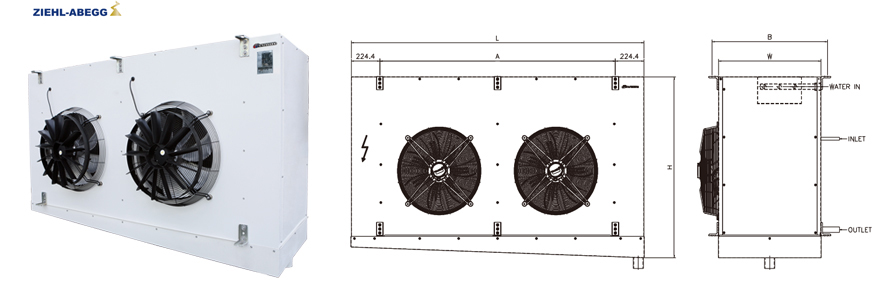

DIMENSION

• Electrical application for fan motor is 3PH 220V/380V 60Hz.
•  Products are designed at 20mmAq static pressure.
• Areas should be avoided corrosive vapors or inflammability materials as polluted air.
•  Specification is subject to change without a notice for improvement.
