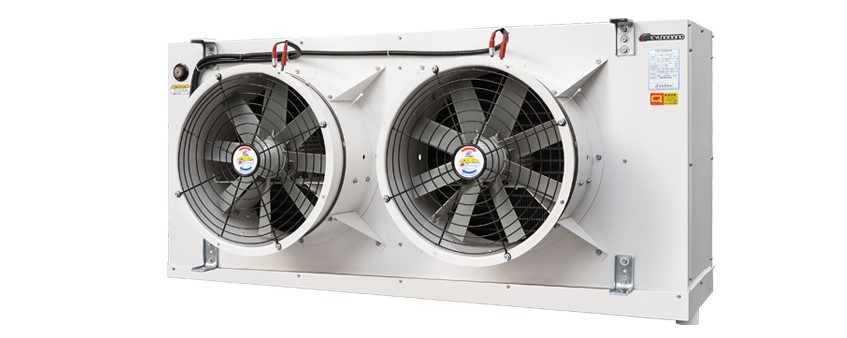

KDU-TYPE

FEATURE

• Ø12.7 inner grooved tube
• PIPE PITCH 33mm × 38.1mm..
• Double fin space making longer defrosting term by even-frosting on surface of coils & effect increasing heat transfer area per unit volume
• Application for medium & large warehouse.

SPECIFICATIONS

• Electrical application for fan motor is 3PH 220V/380V 60Hz.
• Areas should be avoided corrosive vapors or inflammability materials as polluted air.
• Specification is subject to change without a notice for improvement.

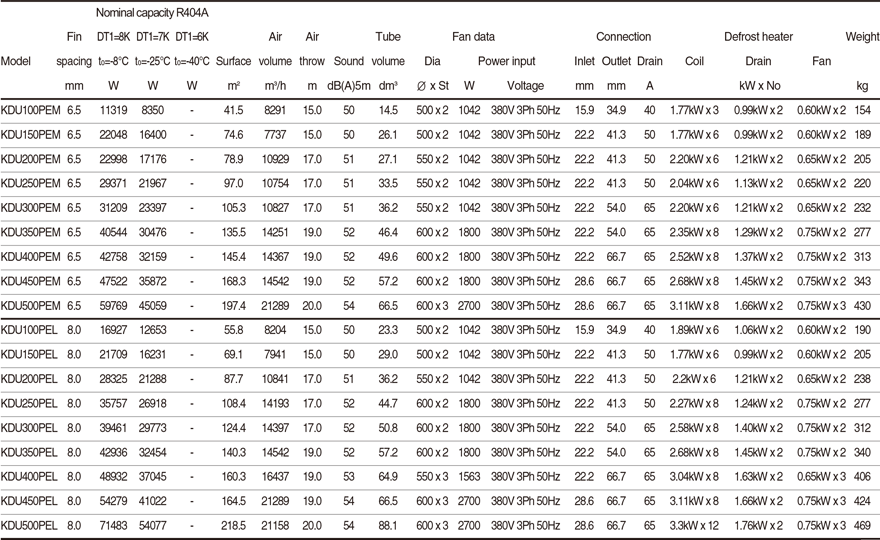

KDU-Type (AXIAL FAN + ELECTRIC DEFROST)

SPECIFICATIONS

•  Electrical application for fan motor is 3PH 220V/380V 60Hz.
• Areas should be avoided corrosive vapors or inflammability materials as polluted air.
• Specification is subject to change without a notice for improvement.

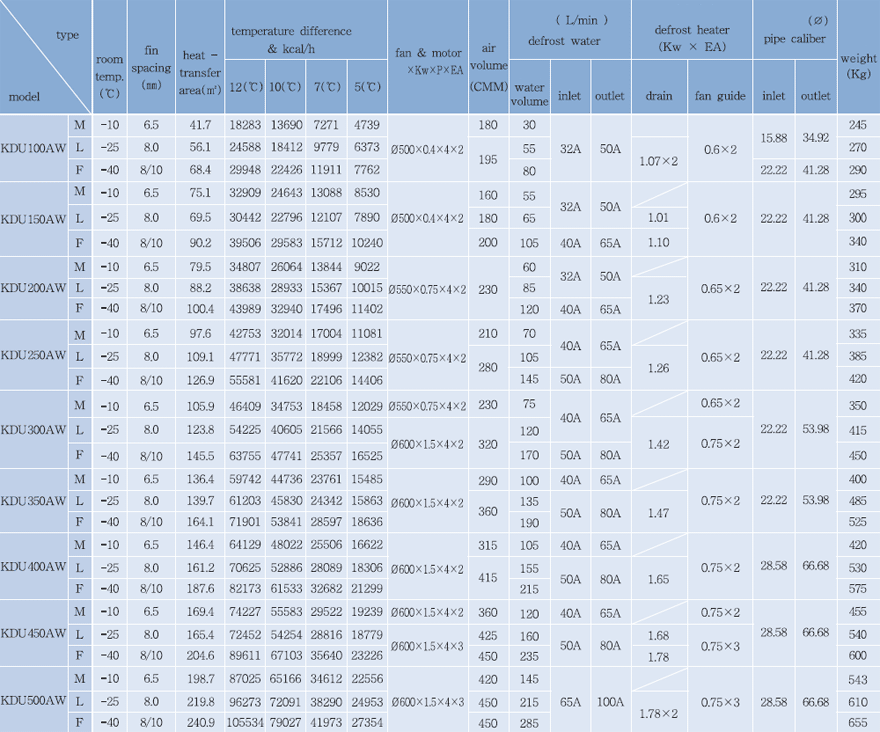

KDU-Type (AXIAL FAN + WATER DEFROST)

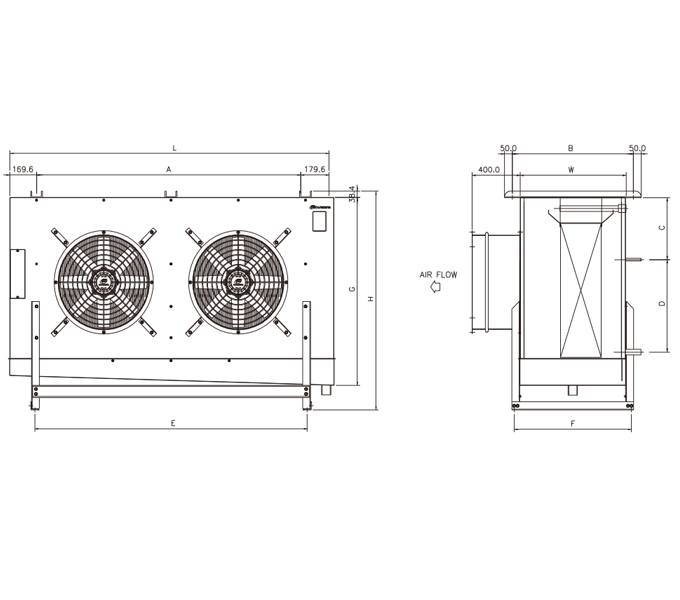

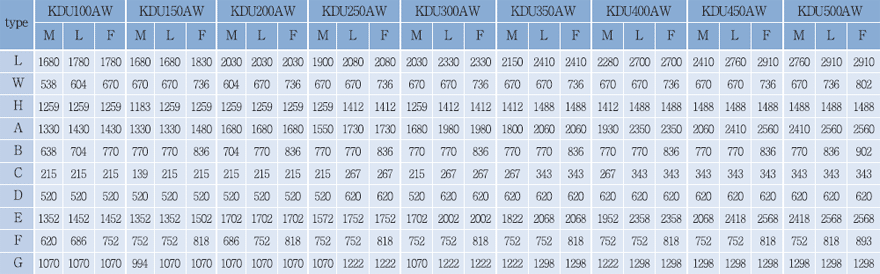

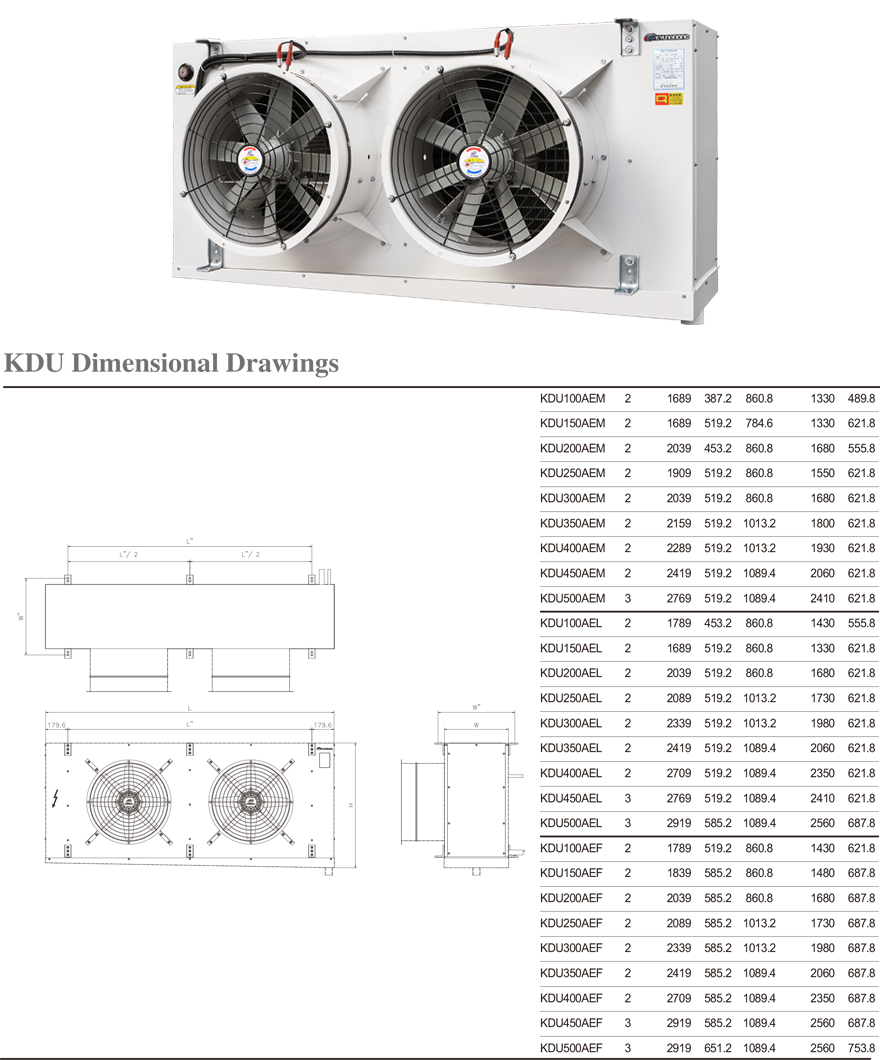

DIMENSION
